The Ultimate Guide to Subaru WRX/STI Boost Solenoids: Why German Engineering Makes the Difference

7 days ago

·

Written by Tomioka Racing

When it comes to maximizing your Subaru WRX or STI's performance, the quality of your boost control solenoid makes all the difference. Today, we're diving deep into why Tomioka Racing's German-engineered boost solenoids have become the go-to choice for serious Subaru enthusiasts.

Why Your Boost Solenoid Choice Matters

Your boost solenoid is the gatekeeper of your turbocharger's performance. A high-quality unit doesn't just control boost pressure – it ensures precise, reliable, and responsive power delivery. This is where German engineering sets Tomioka Racing apart from the competition.

The Tomioka Racing Advantage

At the heart of every TR boost solenoid is Pierburg technology – the same German engineering trusted by Porsche in their forced induction systems.

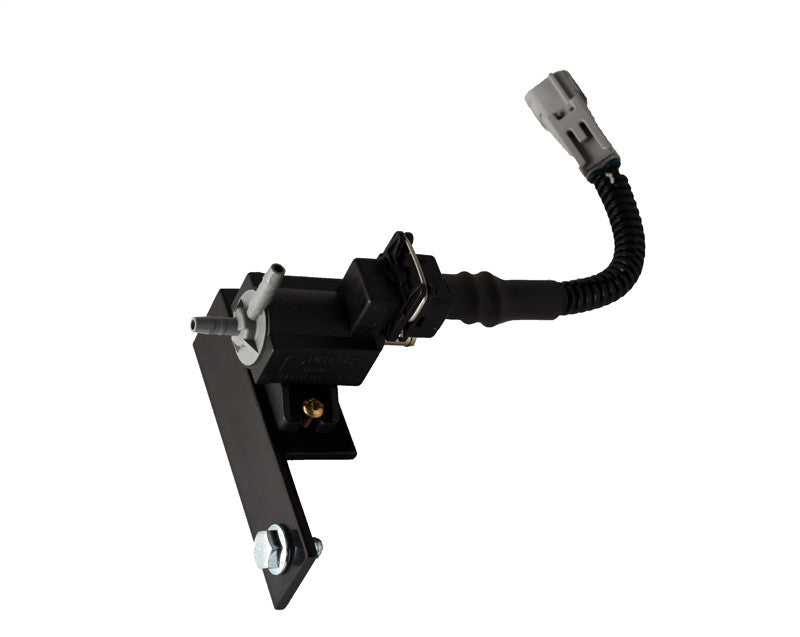

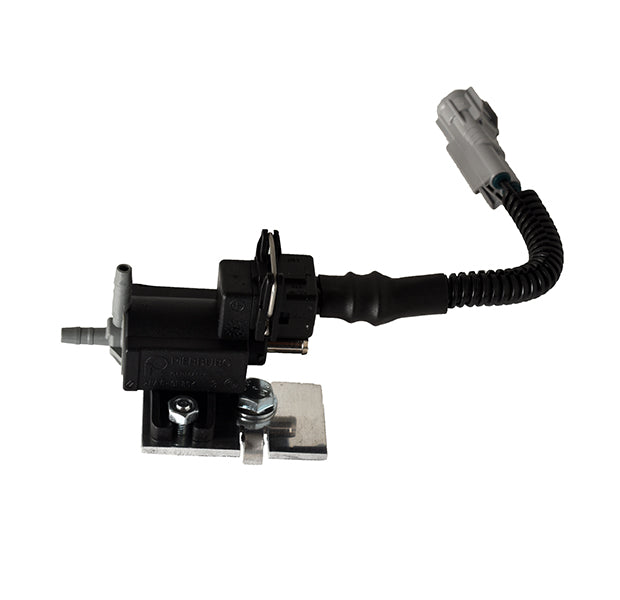

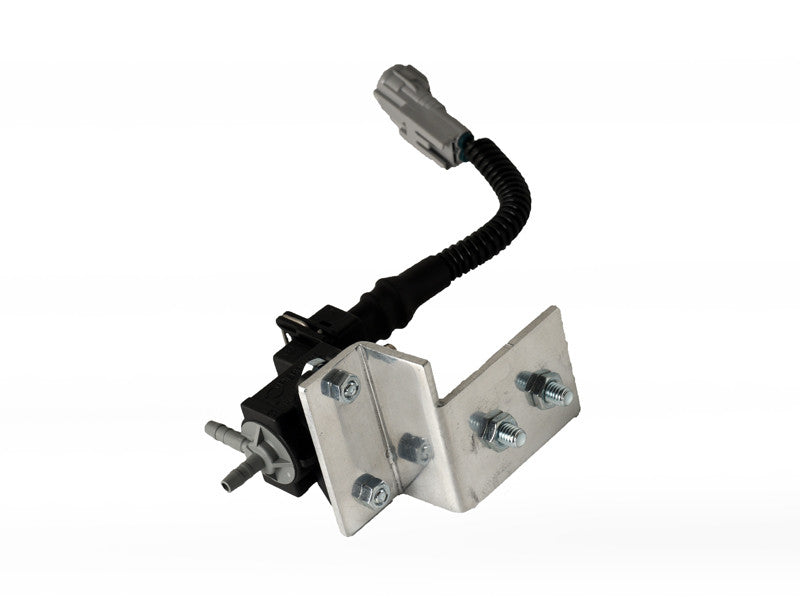

Electronic Boost Solenoid for Subaru Turbo Engines

Our EBCS is a precision-engineered aftermarket replacement specifically designed for 2002-2007 Subaru turbo models. This solenoid improves boost response, enhances turbo performance, and provides superior durability compared to OEM solenoids. Meticulously designed to match your specific Subaru model while offering significant performance improvements over stock.

Technical Specifications

Operating Voltage: 12V DC

Current Draw: 450-500mA

Duty Cycle: 0-100% PWM

Response Time: <10ms

Connection Type: 2-Pin Weatherproof Connector

Thread Size: 1/8" NPT

Pressure Range: 0-25 PSI

Temperature Range: -40°C to 125°C

Body Material: Anodized Aluminum

Seal Material: Viton

Vehicle Compatibility

2002-2007 Subaru Impreza WRX
2004-2007 Subaru Impreza WRX STI
2005-2006 Subaru Legacy GT
2004-2007 Subaru Forester XT
Compatible with stock and mild aftermarket turbo systems
Works with factory and aftermarket ECU tunes

Performance Features

Direct OEM replacement with performance improvements
15% higher flow rate compared to stock EBCS
Improved boost response and reduced turbo lag
Enhanced durability for high-boost applications
Superior heat dissipation for consistent performance
Optimized internal port design for smoother airflow
Tested to over 1 million cycles for maximum reliability
Perfect for both stock and modified applications

Installation Guide

Installation is straightforward and can be completed in under 30 minutes with basic hand tools:

Locate the factory boost solenoid on the intake manifold near the throttle body
Removal of intercooler may be required for easier access
Disconnect the electrical connector by pressing the tab and pulling gently
Disconnect the vacuum lines, taking note of their orientation
Remove the mounting bolt(s) securing the solenoid
Install the new solenoid in the reverse order
Ensure vacuum lines are reconnected in the correct orientation
Secure the mounting bolt(s) to factory torque specifications
Reconnect the electrical connector until it clicks

Pro Tip: No ECU reflash is required for stock applications, but we recommend checking your wastegate actuator function after installation.

OEM vs Aftermarket Comparison

Feature	OEM Solenoid	Our Premium Solenoid	Improvement
Flow Rate	Base Reference	+15% Increased Flow	15% Higher Flow
Response Time	12-15ms	<10ms	20-30% Faster
Heat Resistance	Up to 115°C	Up to 125°C	8.7% Higher
Durability	~350,000 cycles	>1,000,000 cycles	3x Longer Life
Seal Material	Standard Rubber	Viton	Superior Chemical Resistance
Body Construction	Cast Aluminum	Machined Anodized Aluminum	Higher Precision
Boost Consistency	Degrades Over Time	Maintains Performance	More Reliable Long-Term

Engineering Excellence

Each EBCS undergoes rigorous testing on our in-house dynamometer to ensure consistent performance under all operating conditions. Our solenoids are designed to handle increased boost pressure from aftermarket modifications while maintaining OEM reliability standards.
